Notteproof CRY10

Description

It is an insulation material that provides waterproofing in the basic insulations of the buildings as scattering and in the negative direction on the inner surfaces of the buildings. The crystallized chemicals in the NOTTEPROOF CRY10 react in the applied structure to form insoluble crystals. These crystals penetrate the capillary cavities and provide permanent waterproofing as part of the structure.

Usage Areas

In building foundations and subsoil floors & in the elevator pits.
For waterproofing concrete pipes, retaining walls, basement walls from the inside from the negative side.

Characteristics

NOTTEPROOF CRY10 provides lifelong water impermeability to structures by preventing water advancement through crystal formation in capillary cavities.
It prevents moisture and odor on moldy surfaces.
The product remains active and continues to react with moisture and water infiltrating the concrete over time.
It withstands both positive and negative water pressure.
Suitable for application on interior and exterior facades.
Resistant to UV rays and oxidation.
Protects concrete and steel reinforcement from chemicals, increasing the pH value of concrete and preventing corrosion.
The inorganic chemical structure does not compromise the compressive strength of the concrete.
Non-toxic and safe for use in potable water tanks.

Application Method

Apply NOTTEPROOF CRY10 on damp surfaces, moistening dry surfaces before application.
Fully saturate the surface with water 1 day prior to application and again 2 hours before. Avoid puddles on the surface.
Ensure the surface is free from dust, oil, paint, and other substances unrelated to the structure to allow proper penetration.
If needed, roughen the surface to enhance adhesion.

The required amount of water is added and mixed with NOTTEPROOF CRY10 in a bucket.
20 kg powder material (by weight): 6.2-7 kg water is added.

Apply the mixture to the moist concrete surface using a brush in two coats.
The second coat should be applied perpendicular to the first coat before it fully hardens but is dehydrated (within approximately 3-5 hours).

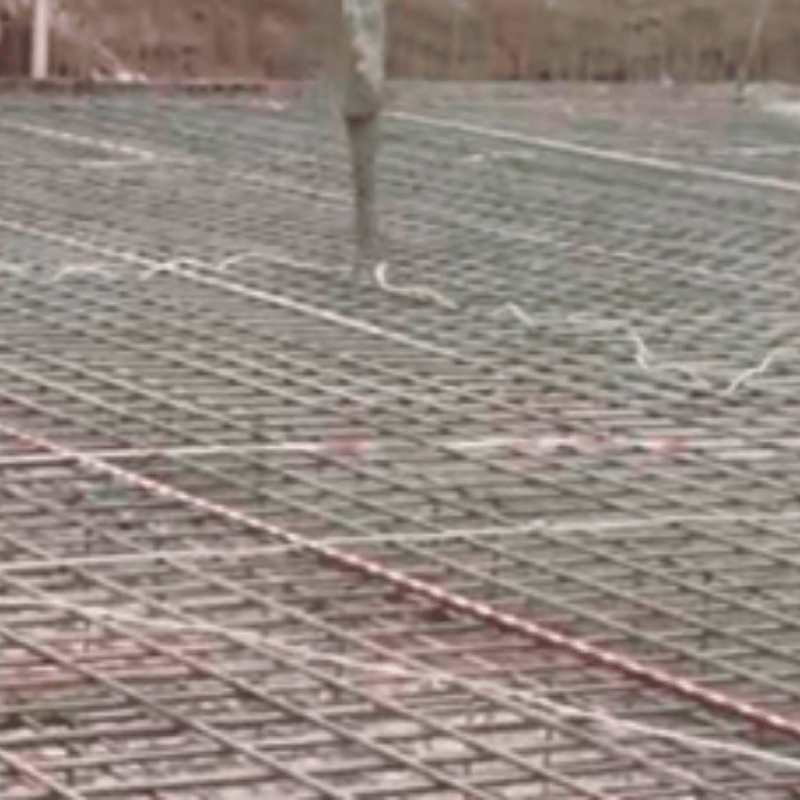

Use as scattering under foundation

After laying the iron mold, sprinkle the material onto the clean concrete at a rate of 3 kg/m². To control consumption, place 20 kg of the material in a 3×2 m (6 m²) tile on the iron and distribute it within that area.
Once fresh concrete is poured over the material, the reaction begins, providing insulation.

Protect the applied surface from rain and frost for at least 24 hours.
Avoid application if the ground temperature is expected to drop below 5°C within 24 hours.
In high-temperature environments, apply the material swiftly and continuously during the morning and evening hours, while keeping it shaded.
In low-temperature environments, begin the application at noon when the temperature is below 5°C and the surface is not frozen.
Keep the material in a warm environment and protect the surface from frost after application.

Consumption

As sliding: 2-3 kg/m² (1 kg/m² each layer)
As sprinkling under foundation: 3-4 kg/m²

Packaging and Storage

20 kg Craft Bag
Shelf life when stored in its original packaging at +10°C / +30°C in dry, protected and ventilated environments, protected from sun, rain and frost, is 12 months from the date of manufacture.

Safety Precautions

Use caution to avoid contact between the material and the skin or eyes during application and mixing. If contact occurs, wash the affected area with plenty of water. In case of contact with eyes, immediately rinse with ample water and seek medical assistance. Wear gloves, protective clothing, masks, and goggles for personal protection during use.

Technical Data

Property	Value
Floor temperature to be applied	+5°C / +35°C
Service temperature	-20°C / +80°C
Adhesion to concrete	> 2 N/mm²
Processability time	20 minutes (20°C, 50% humidity)
Setting Time (20°C)	6 hours first setting, 24-hour final setting
Capillary water absorption	≤ 0.1 kg.m².hours, 5 final (at 20°C)
Mixture density	1.95 ± 0.10 kg/l
Water mixture ratio	31-35%
