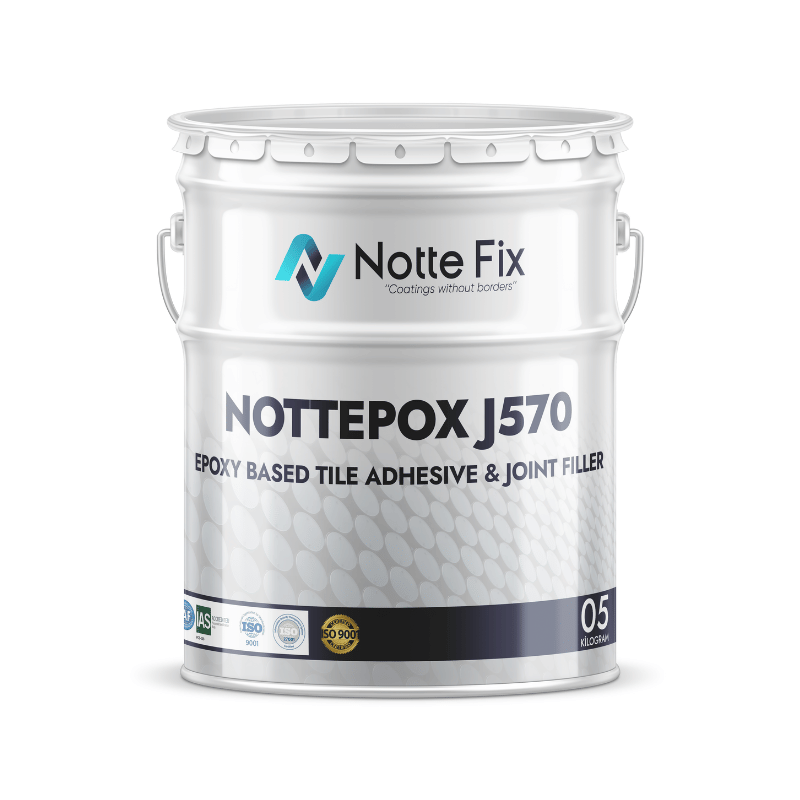

Nottepox J570
Description
Solvent-free, epoxy-based, two-component, chemical-resistant tile adhesive and joint filler. It is used as a grouting material in ceramics, tiles, granite ceramics, glass mosaics joint applications between 2–10 mm. It resists to acids and alkalis, used for bonding on walls and floors, grouting & renewing worn joints.
Usage Areas
- In indoor and outdoor joints (wall and floor)
- Wet areas, swimming pools
- Fixing tiles on metal surfaces
- Grouting material for industrial tile application
Characteristics
- It provides superior resistance to strong acids, bases, and oils.
- It is antibacterial and prevents the formation of bacteria, fungi, and mold.
- It provides waterproofing against leaks.
- It has high pressure and wear resistance.
- It is suitable for drinking water contact.
- It has high resistance to cleaning materials such as bleach, saltwater, lime remover.
Application Method
- Ensure that the surface is clean, dry, smooth, and solid.
- Remove any plaster thinner than 3 mm from the surface.
- Repair significant defects or holes on the surface at least 24 hours prior to applying NOTTEPOX J570.
- For grouting with NOTTEPOX J570, ensure that the joints are dry and clean, and remove any cement or adhesive residues.
- Thoroughly mix both components in the bucket using a low-speed mixer until they form a homogeneous paste.
- If the two components will not be completely consumed, maintain a mixture ratio of 93.3% (component A) to 6.7% (component B) by weight.
- For applications in temperatures below 15°C, store NOTTEPOX J570 in a warm place one day prior to application for ease of application and slipperiness. However, it must be at room temperature during application.
In Ceramic Bonding:
- Apply the mortar to the surface and adjust its thickness using a toothed steel trowel. Select the trowel’s thread size based on the size of the ceramic and the smoothness of the surface.
- For optimal adhesion, expel air by applying force with a rubber hammer. Clean any stains of NOTTEPOX J570 on ceramics with a warm, damp sponge before drying.
In Grout Application:
- Fill the cavities using a spatula or pistol.
- During application, thoroughly clean any NOTTEPOX J570 on the coating with warm water and a damp sponge before the resin sets. Cleaning becomes challenging after the chemical reaction is complete.
Consumption
- For Ceramic Adhesive: 1.5–1.8 kg/m² (for 1 mm thickness).
- For Grouting: Consumption varies according to width and depth.
Packaging and Storage
- Package: 5 (4+1) kg Can.
- Shelf Life: When stored in its original packaging at +10°C to +30°C in dry, protected, and ventilated environments, protected from sun, rain, and frost, it lasts 12 months from the manufacturing date.
Safety Precautions
- Use gloves, protective clothing, masks, and goggles during mixing and application.
- Avoid contact with eyes, mouth, and skin. If contact occurs, rinse with plenty of water.
- If swallowed, seek medical advice.
Technical Data
As a Joint Filler:
| Property | Value |
|---|---|
| Abrasion Resistance | ≥ 250 mm³ |
| Bending Strength | ≥ 30 N/mm² |
| Compressive Strength | ≥ 45 N/mm² |
| Shrinkage | ≤ 1.5 mm/m |
| Water Absorption (after 240 min) | ≤ 0.1 g |
As a Ceramic Adhesive:
| Property | Value |
|---|---|
| Initial Shear Adhesion Strength | ≥ 2 N/mm² |
| Shear Adhesion Strength after Immersion in Water | ≥ 2 N/mm² |
| Tensile Adhesion Strength after Open Hold Time (after at least 20 minutes) | ≥ 0.5 N/mm² |
| Shear Adhesion Strength after Thermal Shock | ≥ 2 N/mm² |
| Slip | ≤ 0.5 mm |
The above values are given at +20°C and for 50% relative humidity. High temperatures shorten the time; low temperatures prolong the time.
