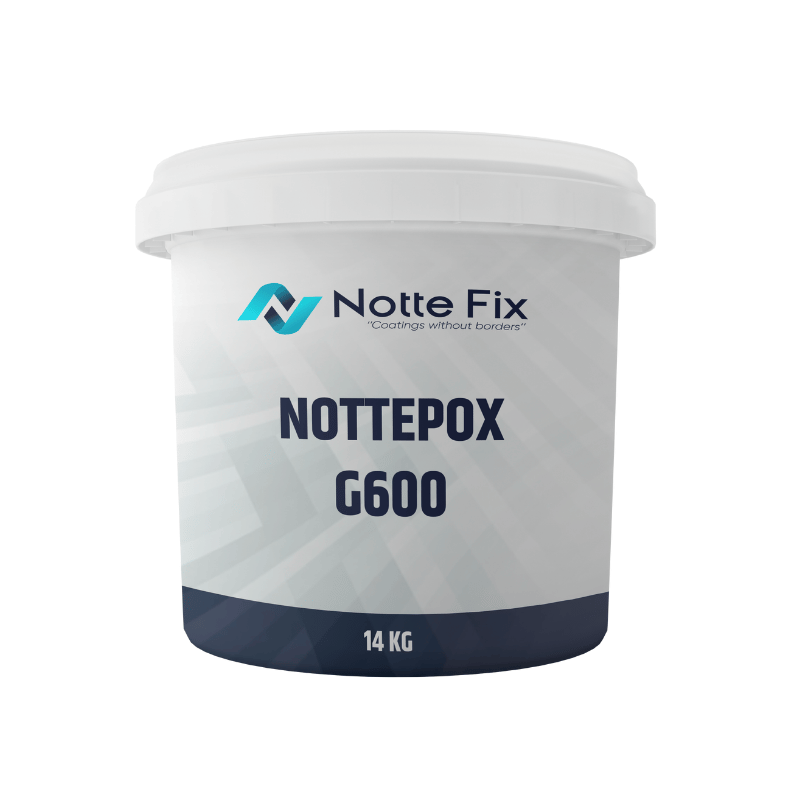

Nottepox G600

Description

NOTTEPOX G600 is a three-component, solvent-free, non-shrinkage, self-levelling epoxy repair, anchorage, grout mortar that can be applied in 4-50 mm thickness.

Usage Areas

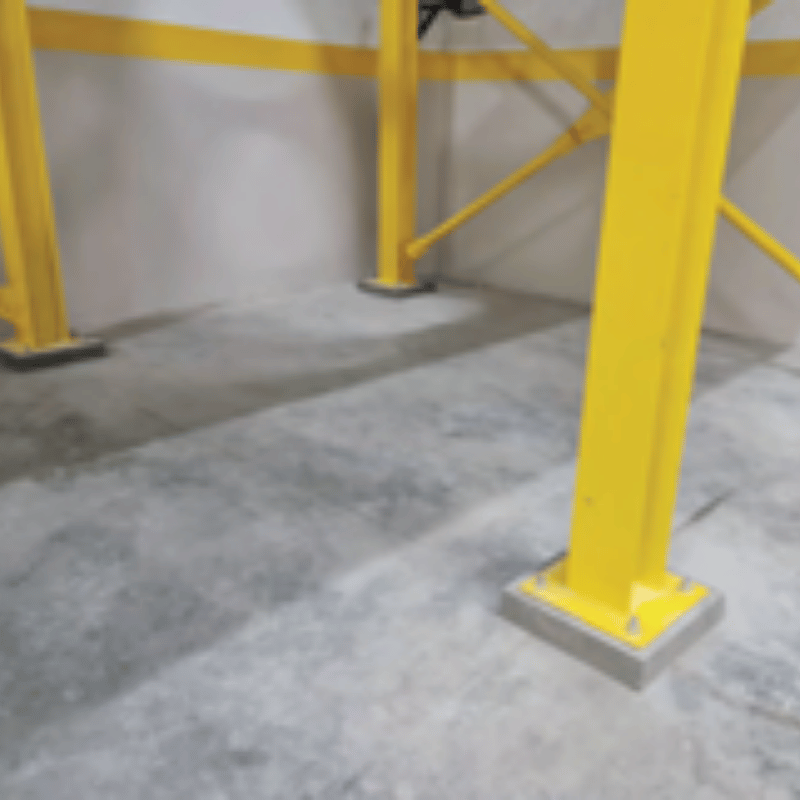

In bridge carrier plates, on metal columns.
On crane rail lines.
In machine foundations on concrete.
On the fastening bolts, in non-flexible joints.
In the anchoring of prefabricated structures.
In the bonding of materials such as concrete, wood, metal.
In the works of plating iron ore in concrete.
In the crack repair of precast, reinforced concrete.
In floor repair and leveling works.

Characteristics

Fast application thanks to self levelling feature.
High wear and impact resistance.
High adhesion to structures such as concrete, steel, wood, stone.
It does not shrink (non-shrink).
It does not precipitate or sediment.
It can be applied in dry or slightly humid environments.
Impermeability to mineral oils, oil, acid, and water.
Resistant to vibration, no primer required.
It can be opened to pedestrians in 24 hours and heavy traffic in 7 days.

Application Method

Clean the surface to be applied, and if necessary, roughen it and remove foreign substances such as oil, rust, paint, and dust.
Apply to concrete that is at least 28 days old and has a dry or slightly damp surface.
Use sand or a brush to remove any debris from steel surfaces until shiny metal is visible.
Clean rust from the reinforcement and add new reinforcement if necessary.

For Machine Foundations:

Clean the concrete surface and roughen the area to be grouted.
Ensure the bolt and base plate are clean.
Pre-drill all release holes for the base plate in advance.
After placing the machine and taking measurements, avoid changing its position.
Apply a light lubrication to the adjustment wedges to prevent mortar from sticking.

Preparation of Molds

Use solid molds with no gaps in the edges.
Leave a 5 cm casting gap between the base plate edge and the mold for pouring grout mortar.
Consider using polyethylene to prevent sticking to the mold walls.

Component B is added into component A and stirred with a low speed stirrer for 1-2 minutes. Then, add dry powdered component C and stir for about 3-4 minutes until a homogeneous mixture is obtained and does not create air bubbles.

Pour NOTTEPOX G600 into mold cavities onto the surface immediately after mixing (4-50 mm thickness).
In repair applications, pour the mortar onto the surface and spread it evenly with a trowel.
Protect from external influences in hot, dry, and windy environments for 48 hours.
In grout applications, pour the mortar from one side of the mold continuously and use a steel wire with a hook to ensure proper placement.
Do not remove the molds for 24 hours and the adjustment wedges for 2 days.
Check the bolts after the machine is commissioned and protect from external influences in warm, dry, and windy environments for 48 hours.

Consumption

2.0 kg/m² per 1mm.
In filling operations, the application thickness should be a maximum of 5 cm in each layer, and additional layers should be applied after the previous layers have hardened, on average 4-5h.

Packaging and Storage

15 kg Tin set (A: 12 kg, B: 2 kg, C: 1 kg)
In its original packaging, when stored in ventilated, dry, and protected environments at +5°C to +25°C, protected from sun, rain and frost, its shelf life is 1 year from the date of manufacture.

Safety Precautions

Gloves, protective clothing, masks/goggles should be used during mixing and application, and contact of the product with eyes, mouth, and skin should be prevented.
In case of contact with skin, it should be washed with plenty of water, and in case of contact with eyes and swallowing, a doctor should be consulted.

Technical Data

Property	Value
Mixture Density	2.0 ± 0.05 kg/liter
Working Time	30 minutes (20°C)
Initial Hardening	6 hours (20°C)
Full Hardening	7 days (20°C)
Application Temperature	-15°C to +40°C
Service Temperature	-15°C to +80°C
Compressive Strength	≥ 80 N/mm² (7 days)
Bending Strength	> 30 N/mm² (7 days)
Adhesion to Concrete	> 30 N/mm² (7 days)
Adhesion to Steel	> 2 N/mm² (7 days)
Color	Grey
