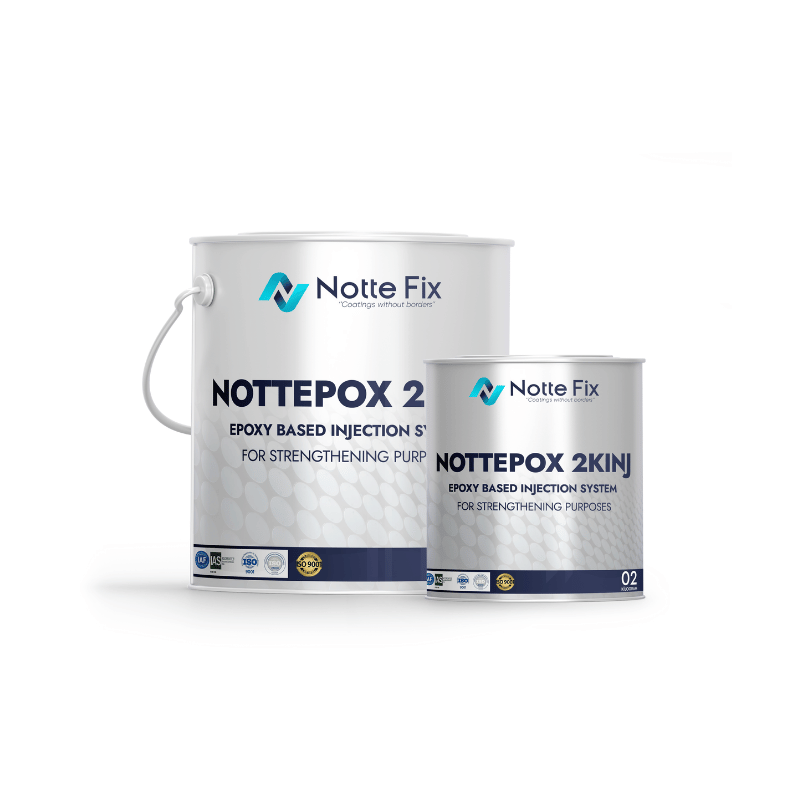

Nottepox 2KINJ

Description

NOTTEPOX 2KINJ is an epoxy based, two-component, non-filling injection resin that fills the fractures and cracks formed in the structural elements where it is injected as an excellent diffusion thanks to its low viscosity.

Usage Areas

In damaged concrete, columns, beams, walls and similar building elements.
To reinforce the structure by filling the static cracks in reinforced concrete, stone, and full brick structures.

Characteristics

Low viscosity, it diffuses very well to the structures.
It fills the crack where it is injected without losing volume and allows it to adhere.
It can be injected into damp concrete.

Application Method

Cracks up to the surface are opened along the crack to form an inverted cone approximately 5 – 10 mm wide and 10 – 12 mm deep.
Dust, dirt, etc., are removed with compressed air.

Packers are used to facilitate the injection of NOTTEPOX 2KINJ epoxy resin into concrete cracks.
Packers are placed into drilled holes to provide access for resin injection.
Injection is performed using an injection pump and the resin is injected through the packers’ nozzles.
Special pumps, such as single or double-headed pumps, are used for the injection process.
A single-headed pump is used for quick injections, while a double-headed pump is preferred for longer durations.
The working pressure during injection should not exceed 5 bar.
Injection relies on capillary pressure for resin propagation rather than increased pump pressure in capillaries.

Consumption

veriable

Packaging and Storage

Packaging: 6 kg Tin set (4 kg (A) + 2 kg (B)).
Storage Conditions: In its original packaging, when stored in ventilated, dry and protected environments at +5°C to +25°C, protected from sun, rain and frost, its shelf life is 1 year from the date of manufacture.

Safety Precautions

Gloves, protective clothing, masks/goggles should be used during mixing and application, and contact of the product with eyes, mouth, and skin should be prevented.
In case of contact with skin, it should be washed with plenty of water, and in case of contact with eyes and swallowing, a doctor should be consulted.

Technical Data

Property	Value
Specific Gravity	1.10 kg/l (A+B)
Color	Transparent
Viscosity	200-300 MPa.s
Application Temperature	+5°C to +35°C
Flash Point	+65°C
Adhesion to Concrete	2 N/mm² (28 days, 20°C)
Compressive Strength	65 N/mm² (7 days, 20°C)
Adhesion to Steel	3.5 N/mm² (28 days, 20°C)
Bending Strength	25 N/mm² (7 days, 20°C)
