Nottefix GROUT
Description
Nottefix GROUT is a ready to use, class, cement based, non-tensile mounting mortar with a flowable consistency for applications between 1 cm.
Usage Areas

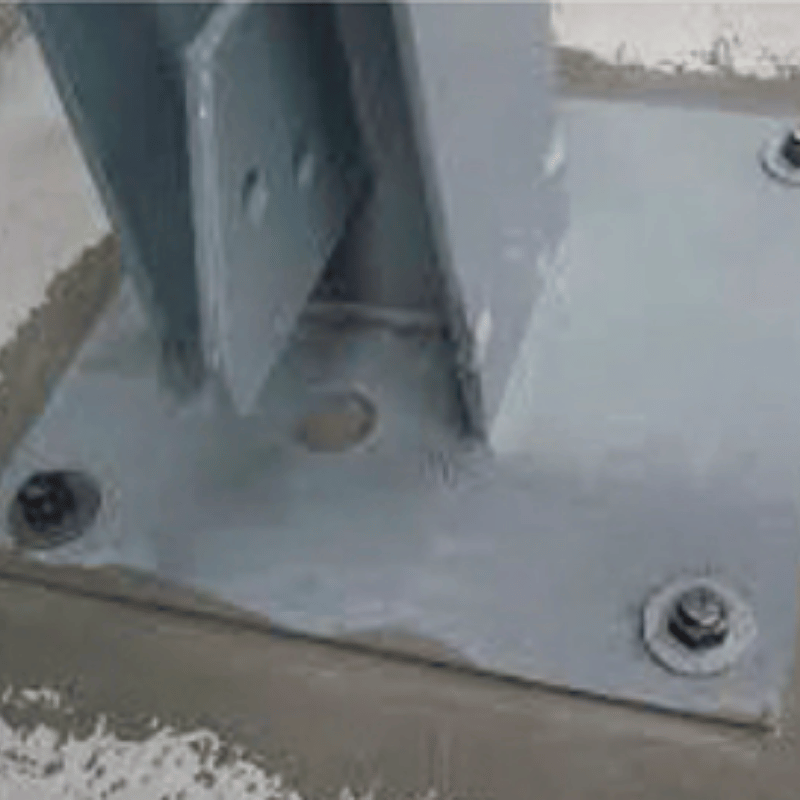

- In light and heavy machine foundation linings, bearing, grouting and assembly works.
- In generators, diesel engines, gas and steam turbines, etc.
- In the manufacture of curtains and column headboards.
- In the assembly of prefabricated concrete building elements.
Characteristics
- It is resistant to chemicals such as oil, chlorine, sulfate.
- It does not shrink (non shrink).
- It is resistant to free ee throw.
- It has high adhesion strength to concrete and steel reinforcement.
- It is resistant to impact vibration.
Application Method
- Preparation + Contact in an On Position
- Loose parts in the concrete to be placed on the machine should be cleaned and the surface should be made slightly rough.
- The bolt and base plate must be completely free of substances such as oil and dust.
- The air release holes for the base plate must be drilled in advance.
- The machine position should not be changed at all after the machine is placed and the screws are adjusted.
- If the adjustment blocks are to be removed later, they must be lightly lubricated.
- Before Application
- Before pouring the mortar, the foundation concrete should be saturated with water and free after should be taken before application.
- Preparation
- Molds should be made of mortar resistant material.
- From the side where the mortar will be poured, a casting gap of 15 cm should be left between the base plate and the mold.
- On the other hand, a gap of 15 cm should be left.
- A margin of 5 cm should also be left for mortar height.
- If oversided plates, the height can be 0.5 m and the first batch is ouri by adding 10% water to the casting to increase workability.
- No other machinery should be operated near the machine where the assembly mortar will be made, until the mortar hardens. The mortar is poured from one side continuously.
- The mortar should never be poured from both sides.
- Good filling of the mortar can be achieved by moving back and forth under the plate with a flexible steel whip.
- If the exposed edges are desired to be broken after consumption.
Consumption
19.5 kg/m for 1cm thickness (1950 kg/m³)
Packaging and Storage

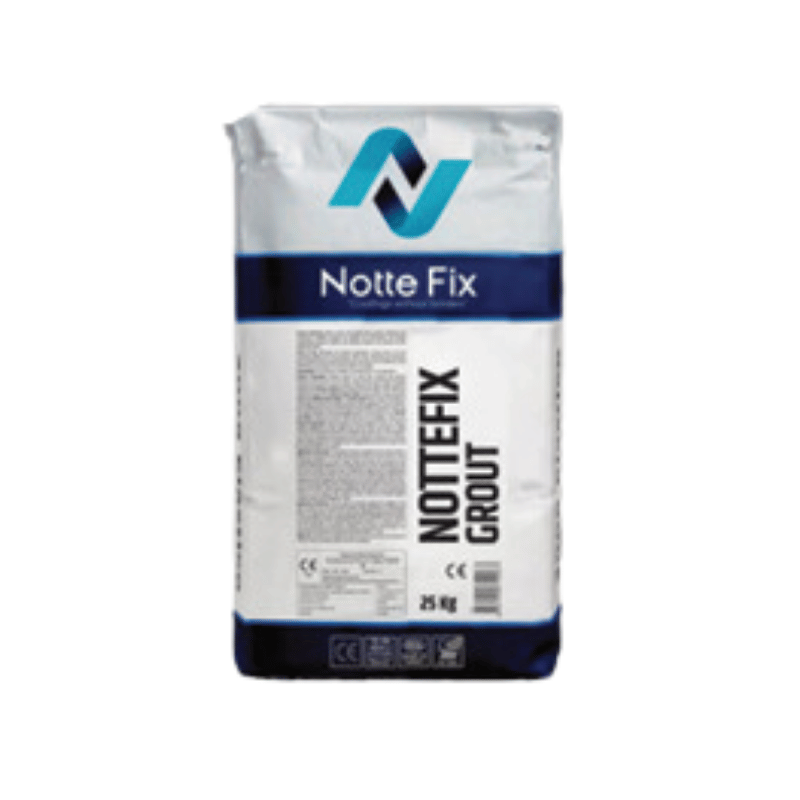

- 25 kg bag
- In its original packaging, when stored in ventilated, dry, and protected environments at +5°C / +25°C, protected from sun, rain, and frost, its shelf life is 1 year from the date of manufacture.
Safety Precautions
- Gloves, protective clothing, masks/goggles should be used during mixing and application, and contact of the product with eyes, mouth, and skin should be prevented.
- In case of contact with skin, it should be washed with plenty of water, and in case of contact with eyes and swallowing, a doctor should be consulted.
Technical Data
Application Areas
