Nottefix Fuga

nottefix-fuga-tds

Description

NOTTEFIX FUGA is a filling material for 1-6 mm joints used as tiles, ceramics.

Usage Areas

In indoor areas, on horizontal and vertical surfaces.
Tile, ceramic, glass mosaic, joints.
In wet areas.

Characteristics

Suitable for joints 1-6 mm width.
It adheres well to the ceramic edges.
It is resistant to freeze-thaw cycle.
Resistant to shocks and vibrations.

Application Method

The ceramic adhesive mortar must be thoroughly hardened.
Joints should be cleared of substances that prevent adhesion, cleaned, and moistened with a wet sponge.

NOTTEFIX FUGA is added to clean water and mixed. (Water ratio 30–35% by weight of powdered product):
- 6–7 L of water is added for 20 kg of powdered product.
- 3–3.5 L of water is added for 10 kg of powdered product.
- 1.5–1.75 L of water is added for 5 kg of powdered product.
After the mixed material is kept for about 5 minutes, it is applied again by mixing for 30 seconds.

The material is spread on the ceramics with a rubber joint spreading trowel and filled into the joint cavities in parallel and then cross-filled.

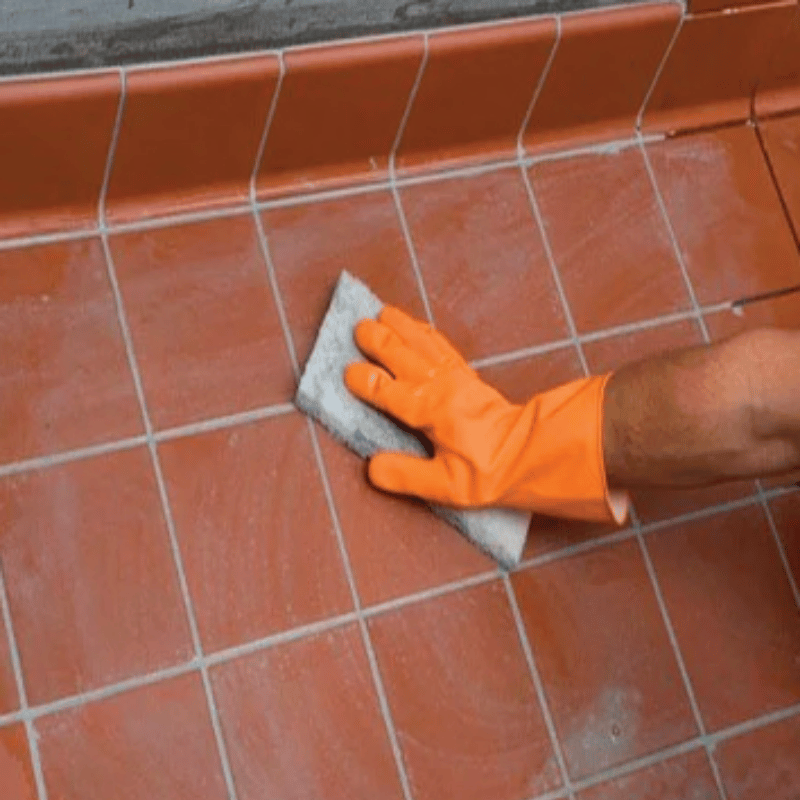

The excess material is stripped off the surface with a soft-tipped spatula. After 15–30 minutes, it is cleaned with a damp sponge.
After the material is dried, it is polished with a dry, clean cloth.
The application should not be done directly under the sun, in places exposed to wind, and under rain.
On underfloor heating, the heating system must be switched off 24 hours before application.

Consumption

Packaging and Storage

20 & 10 kg craft bag, 5 kg polyethylene bag.
Shelf life when stored in its original packaging at +10°C/+30°C in dry, protected, and ventilated environments, protected from sun, rain, and frost, is 12 months from the date of manufacture.

Safety Precautions

Gloves, protective clothing, masks/goggles should be used during mixing and application, and contact of the product with eyes, mouth, and skin should be prevented. In case of contact with skin, it should be washed with plenty of water, and in case of contact with eyes and swallowing, a doctor should be consulted.

Technical Data

Property	Value
Density	1.10 kg ± 0.02 kg/lt
Water ratio	30–35% of the powdered product
Wear resistance	≤ 1000 mm³ (EN 12808–2)
Compressive Strength	≥ 10 N/mm² (EN 12808–3)
Bending Strength	≥ 2.0 N/mm² (EN 12808–3)
Shrinkage	≤ 5 mm/m (EN 12808–4)
Water absorption	≤ 5 (30 minutes) (EN 12808–5)
Resting time	5–10 minutes
Open time	1 hour
Service temperature	-30°C/+80°C
Application floor temperature	+5°C/+35°C
Application thickness	1–6 mm
Opening time for use	12 hours wall, 24 hours floor
Opening to pedestrian traffic	7 days
Working/Application time	~30 minutes
