Nottefix 1013
Description
NOTTEFIX 1013 is a high-performance polymer reinforced flexible, extended adhesive for large-sized & granite/porcelain tiles.
Usage Areas
- In indoor and outdoor areas, on horizontal and vertical surfaces.
- In granite/porcelain tiles applications.
- Terraces and balconies.
- Areas with continuous exposure to water (with water absorption ratio of below 3%) such as swimming pools.
- Adhesion of large-size ceramics.
- Areas with intense pedestrian traffic such as shopping malls, schools, hospitals.
Characteristics
- It has extended working/application time.
- No sliding on vertical applications.
- It is highly flexible and high adhesive strength.
- It is resistant to stresses and vibrations arising from freezing, thawing, and temperature differences.
- It has high adhesion strength, it is watertight.
Application Method
- Ensure that the surface to be applied is solid and clean.
- Conduct surface repairs at least 24 hours in advance and remove any materials that may hinder mortar adhesion, such as oil, paint, or powder.
- If the surface temperature is above 30°C, moisten the surface and avoid exceeding 2% of the surface moisture rate during application.
- On plaster or anhydrous surfaces, ensure that the moisture content does not exceed 0.5%.
- For absorbent surfaces like gypsum, apply NOTTEPRIME P400 as a primer.
- 25 kg powder material is added to ~6.50 lt water.
- The required amount of water is placed in a clean bucket.
- The necessary powder product is added on it and it is mixed with the mixer for 3–5 minutes until a homogeneous and lump-free mortar is obtained.
- After the material is rested for 5 minutes, it is ready to apply.

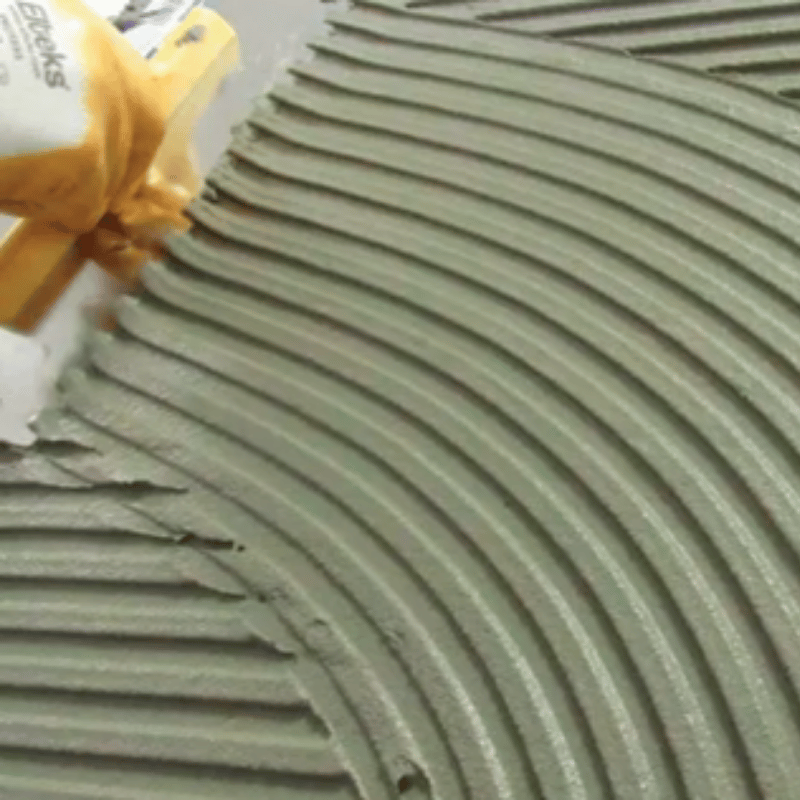

- With a suitable notched trowel (U8X8 or U10X10), NOTTEFIX 1013 is applied on the surface.
- The application is completed by leaving joints (joints should be 3 mm in 5×5 cm ceramic, 4 mm in ceramic up to 15×15 cm, 6–8 mm in ceramic over 15×15 cm).
- Ceramics should be installed within 15–20 minutes after applying NOTTEFIX 1013 mortar.
- Avoid applying the material when the ground temperature is below +5°C.
- Protect the applied material from rain, frost, and direct sunlight during the first 12 hours after application.
Consumption
| Ceramic Size | Joint | Consumption |
|---|---|---|
| >10×10 cm | 6 mm | 4–5 kg/m² |
| >15×15 cm | 8 mm | 4.5–5.5 kg/m² |
| >30×30 cm | 8 mm | 5.5–6.5 kg/m² |
| <30×30 cm | 10 mm | 5.5–7 kg/m² |
Packaging and Storage
- Package: 25 kg craft bag.
- Shelf life when stored in its original packaging at +10°C/+30°C in dry, protected and ventilated environments, protected from sun, rain, and frost, is 12 months from the date of manufacture.
Safety Precautions
- Gloves, protective clothing, masks/goggles should be used during mixing and application, and contact of the product with eyes, mouth, and skin should be prevented.
- In case of contact with skin, it should be washed with plenty of water, and in case of contact with eyes and swallowing, a doctor should be consulted.
Technical Data
| Property | Value |
|---|---|
| Water mixture ratio | ~24–28% of powder product |
| Initial tensile strength | ≥1.2 N/mm² |
| Tensile strength after immersion in water | ≥1 N/mm² |
| Tensile strength after heat aging | ≥1 N/mm² |
| Tensile strength after freeze-thaw cycle | ≥1 N/mm² |
| Tensile strength after open hold time | ≥1 N/mm² |
| Slipping | ≤2 mm |
| Open time | 3 hours |
| Grouting time | 24 hours |
| Working/Application time | 40 minutes |
| Service temperature | -20°C / +80°C |
| Ground temperature | +5°C / +30°C |
| Mortar thickness | 4–10 mm |
| Color | Grey, white |
