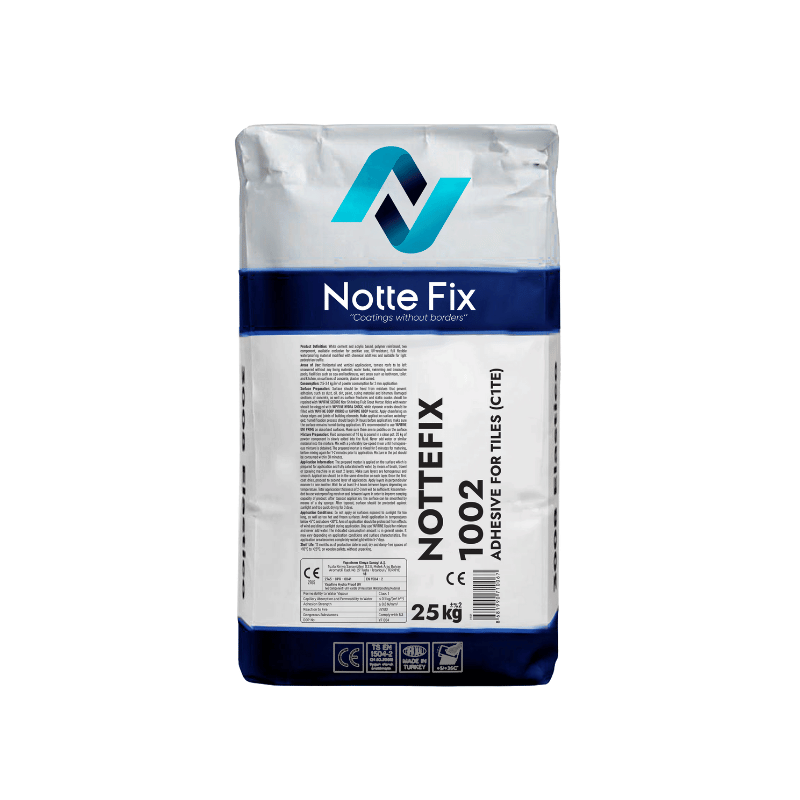

Nottefix 1002
Description
NOTTEFIX 1002 is a white or grey adhesive mortar used for adhesion of ceramics & tiles on concrete screed and plaster for 3-6 mm thickened application.
Usage Areas
In indoor and outdoor spaces, on horizontal & vertical surfaces.
Characteristics
- It has extended working/application time.
- It is resistant to freeze-thaw cycle.
- It has adhesion strength.
- It does not sag and does not slip.
- It can be used indoors and outdoors in wet areas such as bathroom and kitchen.
Application Method
- Ensure that the surface is solid and clean before application.
- Perform any necessary surface repairs at least 24 hours in advance, removing any materials that may hinder mortar adhesion, such as oil, paint, or powder.
- If the surface temperature exceeds 30°C, moisten it and be cautious not to exceed 2% surface moisture during application.
- The moisture content should not exceed 0.5% on plaster or anhydrous surfaces.
- 25 kg powder material is added to ~ 6.50 lt water.
- The required amount of water is placed in a clean bucket.
- The necessary powder product is added on it and it is mixed with a mixer until a homogeneous and lump-free mortar is obtained.
- After the material is rested for 5 minutes, it is ready to apply.
- With suitable notched trowel (U8X8 or U10X10), NOTTEFIX 1002 is applied on the surface.
- The application is completed by leaving joints (joints should be 3mm in 5x5cm ceramic, 4mm in ceramic up to 15x15cm, 6-8 mm in ceramic over 15x15cm).
- NOTTEFIX 1002 adhesive mortar requires a waiting time of 30-40 minutes after application.
- Before applying, perform a test by pressing the mortar with fingers. If the fingers get contaminated, the mixture can still be used as an adhesive.
- The thickness of NOTTEFIX 1002 adhesive mortar should not exceed 6 mm.
- Do not apply the material when the ground temperature is below +5°C.
- Protect the material from rain, frost, and direct sunlight within the first 12 hours after application.
- Prepare the mixture according to the working/application time.
- Allow a 24-hour gap after applying tiles before applying joints.
- Maintain a minimum joint width of 3 mm.
- Priming of plaster is necessary for absorbent surfaces.
Consumption
| Ceramic Size | Joint | Mortar Thickness | Consumption |
|---|---|---|---|
| >10×10 cm | 4 mm | 1-2 mm | 1.2–2.4 kg/m² |
| >15×15 cm | 6 mm | 2-3 mm | 2.4–3.6 kg/m² |
| >30×30 cm | 8 mm | 3 mm | 3.6–4.2 kg/m² |
| <30×30 cm | 10 mm | 4 mm | 5.6 kg/m² |
Packaging and Storage
- Package: 20 & 25 kg craft bag
- Shelf Life: 12 months from the date of manufacture when stored in its original packaging at +10°C to +30°C in dry, protected, and ventilated environments, protected from sun, rain, and frost.
Safety Precautions
- Gloves, protective clothing, masks/goggles should be used during mixing and application.
Contact of the product with eyes, mouth, and skin should be prevented.
If contact occurs with skin, wash with plenty of water.
In case of contact with eyes or swallowing, consult a doctor.
Technical Data
| Property | Value |
|---|---|
| Water Mixture Ratio | ~24–28% of powder product |
| Density | 1.6 kg/lit |
| Initial Tensile Strength | ≥ 0.50 N/mm² |
| Tensile Strength After Immersion | ≥ 0.50 N/mm² |
| Tensile Strength After Heat Aging | ≥ 0.50 N/mm² |
| Tensile Strength After Freeze–Thaw | ≥ 0.50 N/mm² |
| Tensile Strength After Open Hold | ≥ 0.50 N/mm² |
| Slipping | ≤ 7 mm |
| Open Time | 1 hour |
| Grouting Time | 24 hours |
| Working/Application Time | 20 minutes |
| Service Temperature | -20°C to +80°C |
| Ground Temperature | +5°C to +30°C |
| Mortar Thickness | 3–6 mm |
| Color | Grey, white |
